Description

Portable 4-stroke Honda BF5 Outboard Motor

SPECIFICATIONS

ENGINE
BF5

Type
4-Stroke OHV, 1 Cylinder/2 Valves

Displacement
127 cc (7.8 cubic inches)

Bore & Stroke
60 mm x 45 mm (2.4 x 1.8 inches)

Full Throttle RPM Range
4,500-5,500 RPM

Rated Power
5 HP @ 5,500 RPM

Cooling System
Water Cooled

Fuel Delivery
1 Carburetor

Internal Fuel Tank Capacity
1.5L (.39 gal.)

Ignition System
Digital CDI

Starting System
Recoil

Exhaust
Under Water, Above Propeller

Lubrication
Wet Sump

Trim Range
5-Stage 5°-9°-13°-17°-21°

Tilt Range
70°

DRIVE
BF5

Gear Ratio
2.08:1

Gear Shift
F-N-R

EQUIPMENT
BF5

Alternator
Opt. 6-Amp

Propeller
3-Blade Aluminum

Diameter x Pitch
7? x 6¾ inches

Available Optional Propellers
3

Oil Pressure Alert
Standard

Low Oil Pressure RPM Reduction
Standard

Rev-Limiter
Standard

External Fuel Tank Connector
Standard

Decompression Mechanism
Standard

One-Touch Stop Button
Standard

DIMENSIONS
BF5

Overall Width
347 mm/13.66 in.

TRANSOM HEIGHT
BF5

S Type
434 mm/15 in.

L Type
561 mm/20 in.

DRY WEIGHT
BF5

S-Type
27 kg/60 lb.

L-Type
27.5 kg/60.6 lb.

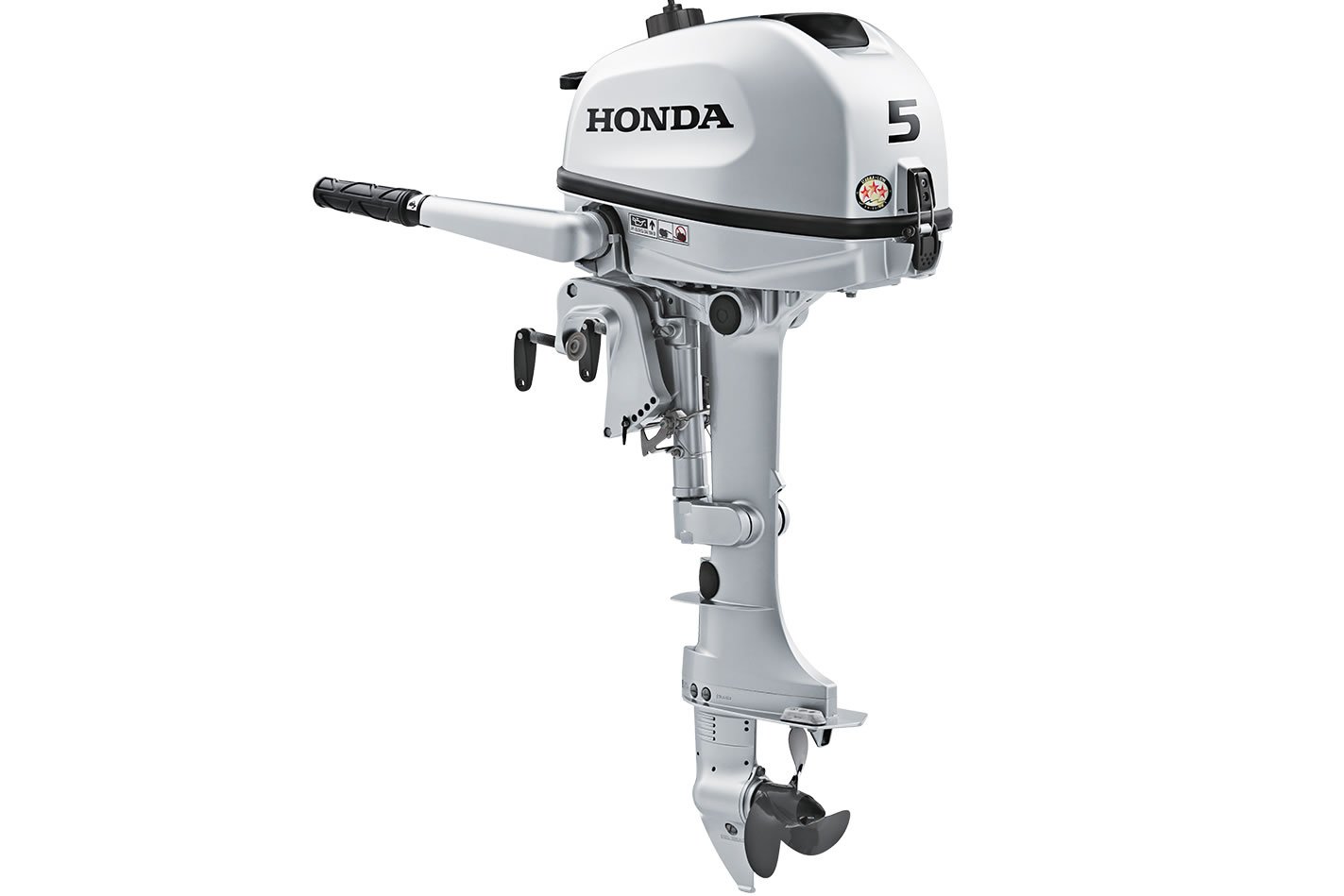

Honda BF5
Honda BF5 – beach
