Description

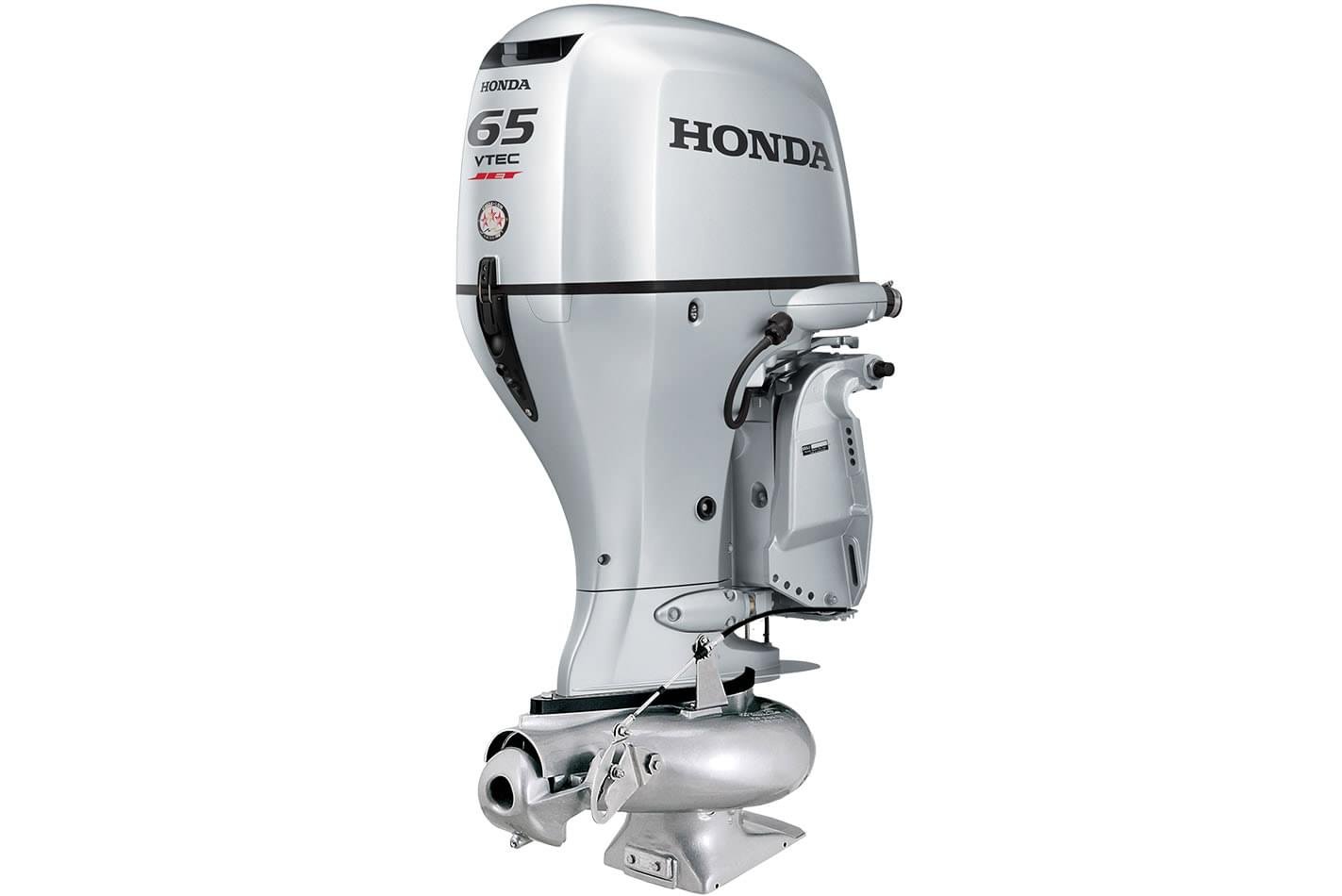

Honda 65 HP Jet Driver Outboard Motor

SPECIFICATIONS

ENGINE
65 JET

Type
4-Stroke SOHC 4 Cylinder/16 Valves

Displacement
1,496 cc (91.4 cubic inches)

Bore & Stroke
73 mm x 89.4 mm (3.0 x 3.5 inches)

Full Throttle RPM Range
5,300-6,300 RPM

Rated Power
65 HP @ 5,800 RPM

Cooling System
Water Cooled

Fuel Delivery
Programmed Fuel Injection

Ignition System
MicroComputer Programmed

Starting System
Electric

Exhaust
Through Hub

Lubrication
Wet Sump

Trim Range
-4° to +16°

Tilt Range
68°

DRIVE
65 JET

Gear Ratio
Direct Drive

Gear Shift
F-N-R

EQUIPMENT
65 JET

Alternator (Electric Start)
44 Amp

Battery Charging Power
35 Amp

Propeller
NA (No Prop)

Power Tilt
NA

Power Trim & Tilt
Standard

Gas Assisted Tilt
NA

Oil Pressure Alert
Standard

Temperature Alert
Standard

Rev-Limiter
Standard

Speedometer Pickup
Standard

DIMENSIONS
65 JET

Overall Width
480 mm/18.9 inches

TRANSOM HEIGHT
65 JET

L Type
635 mm/25 inches

DRY WEIGHT
65 JET

L-Type
169 kg/373 lbs.
