Description

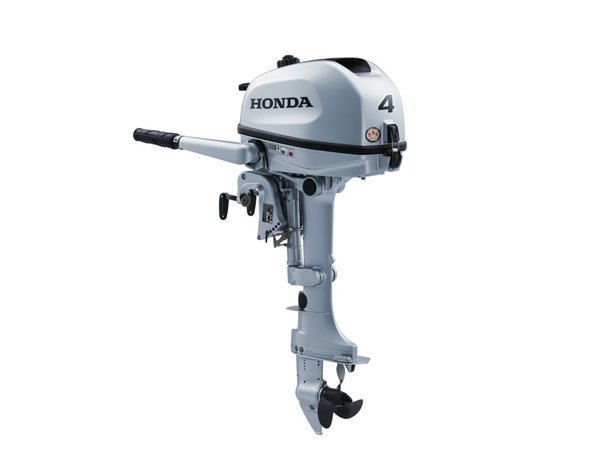

2017 HONDA 4 HP BF4DHSHNA Outboard Motor

The new Honda 4 HP outboard motor is everything you want in a portable outboard. From comfortable carrying handles to a one touch stop switch to the longest run time in its class, this is a motor that redefines what a portable should be. The BF4 outboard motor is lightweight, fuel efficient and ideal for small tenders, canoes, jon boats, and inflatables. This best-in-class 4 HP motor is available with the internal fuel tank and in 15 and 20 inch shaft models. The new Honda 4 HP is another best-in-class portable outboard.

2017 HONDA 4 HP BF4DHSHNA Outboard Motor

Reliable, efficient 4-stroke design
Lightweight and Compact
Convenient Fold-Down Tiller Handle
Large Displacement Engine for more power
Twist grip throttle – more comfortable to use
True 5 Warranty – high-quality peace of mind
4-Front Corrosion Protection System – Fights the elements
Digital CD Ignition – easy starting
Low Oil Warning and RPM Reduction Alerts
Easy to carry and install
New Isolation Mounts – Reduced Vibration for Comfort and Durability
Shallow Water Drive
F-N-R Gearshift
Wet Sump Lubrication – better durability
Ultra Low 3 Star CARB Emissions
Optional 6 amp charging system
Decompression Mechanism for easy starts
Easy One-Push and Release Stop Button
1.5L internal tank (only)

2017 HONDA 4 HP BF4DHSHNA Outboard Motor

Model?
BF4DHSHNA

Model Year?
2017

SKU?
BF4DHSHNA-17

Weight?
59.5000

Manufacturer?
Honda

Country of Manufacture?
China

Horsepower?
4hp

Shaft Length?
15″ (Short)

Steering
Tiller

Starting
Manual

Trim & Tilt
Manual

Fuel Delivery
Carburetor

Fuel Tank
External

Cylinder(s)
1

Displacement
127 cc (7.8 cubic inches)

Bore and Stroke
60 x 45 mm (2.4 x 1.8 in.)

Full Throttle RPM Range
4500-5500 RPM

Ignition System
Digital CDI

Induction Scavenging
OHV

Valves per Cylinder
2

Fuel Type
Unleaded Gasoline (87 octane)

Fuel Tank / Fuel Line
Internal (1.5 L) only

Oil Type
FC-W 10W-30

Oil Capacity
Please inquire.

Lubrication
Wet Sump

Alternator
OPTIONAL 6 amp (installation required)

Cooling System
Water Cooled

Saltwater Rated
YES

Gear Ratio
2.08:1

Gear Shift
Forward, Neutral, Reverse

Propeller
7-7/8″ Dia. x 7-1/2″ Pitch 3-Blade Aluminum

Internal Battery
No


2017 HONDA 4 HP BF4DHSHNA Outboard Motor
What’s in the box?

Aluminum Propeller
Owner’s Manual & Tool Kit
True 5-Year Warranty
