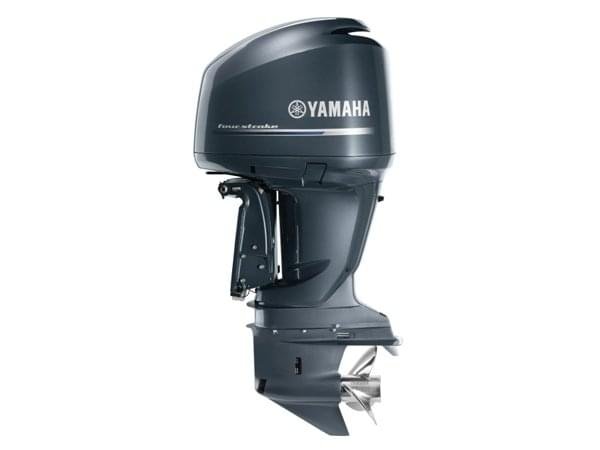

2017 Yamaha F225 3.3L Offshore XCA Outboard Motor

FOR THOSE WHO DEMAND LEGENDARY OFFSHORE PERFORMANCE.

Yamaha’s legendary V6 3.3L four strokes set the course for today’s offshore power. When they first hit the water, they brought with them several innovations that radically improved low-end and midrange torque, acceleration and top-end speed. This technology was so revolutionary that it garnered not only a BoatingWeek Innovation Award, but also an Editor’s Choice Award from MotorBoating Magazine.

2017 Yamaha F225 3.3L Offshore XCA Outboard Motor

Power/Performance

Mechanically Remote-Controlled Four Stroke V6 Outboard

Narrow 60° 3.3L Block Design

Variable Camshaft Timing

Long Track Induction System

Precision Multi-Point Fuel Injection

6 Independent Fuel Injectors

4 Large Radius Valves Per Cylinder

High Intake Valve Lift

Double Overhead Camshafts

In-Bank™ Exhaust

Exhaust Pressure Reduction System

Reliability/Durability

TCI Microcomputer

Electronic Single Throttle Valve (65mm)

Direct Drive System

Sacrificial Anodes

Forged Pistons

Water Cooled Rectifier/Regulator

Water Separator

Direct Ignition

YDC-30 Aluminum Alloy

5-Step Anti-Corrosion Paint Process

Top Mounted Electrical

High Output Alternator

SST Drive, Prop, Shift Shafts

SST Steering Tube

Convenience/Control

Command Link® System

Power Trim & Tilt

Freshwater Flush

Counter Rotation “LF” Model

Yamaha Diagnostic System

Multi-Charge Monitoring System

Single Belt Drive System

2017 Yamaha F225 3.3L Offshore XCA Outboard Motor

Year 2017

Manufacturer Yamaha Marine

Model Name F225 3.3L Offshore

Trim Name XCA

Generic Type (Primary) Four Stroke

Engine

Engine Type 60° V6 DOHC 24-Valve

Engine Power 250hp at 5500 rpm

Alternator (Output): 44 Amp

Gear Ratio (Primary) (30:15) 2.00:1

Displacement 3352cc (3.3L)

Lubrication Wet sump

Ignition System: TCI Microcomputer

Fuel System (Induction): EFI/VCT/DOHC

Oil Type (Recommended): Yamalube® 4M (See owner’s manual)

Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 89)

Fuel Type (Recommended Filtration): Yamaha 10-Micron Fuel/Water Separating Filter (external)

Capacities

Oil capacity 4.7L/4.5L without filter

Spark Plug

Spark Plug LFR6A-11

Range

Note Full Throttle RPM Range: 5000 ~ 6000 rpm

Dimensions

Length Shaft: X = 25″

Bore 3.70 in. (94 mm)

Stroke 3.17 in. (80.5 mm)

Weights

Dry Weight 276 kg (608 lb)

Features

Exhaust Through Propeller

Note Ethanol Blend Limit: 10% Maximum

Features Degree of Tilt: 70° -Degree of Trim: -3° through +16°

Steering Angle Maximun: 32° from center, either direction

Features C.A.R.B. Rating: 3 Star

Note Gear Shift: Forward, Neutral, Reverse

Cooling Water/Thermostatic Control

Note Mounting Centers: 28.6″

Intake Design Single Throttle Valve

Compression Ratio 9.9:1

Starter T = Electric w/ PTT

Warranty

Warranty 3-Year Pleasure, 3-Year Government, 1-Year Commercial
