Description

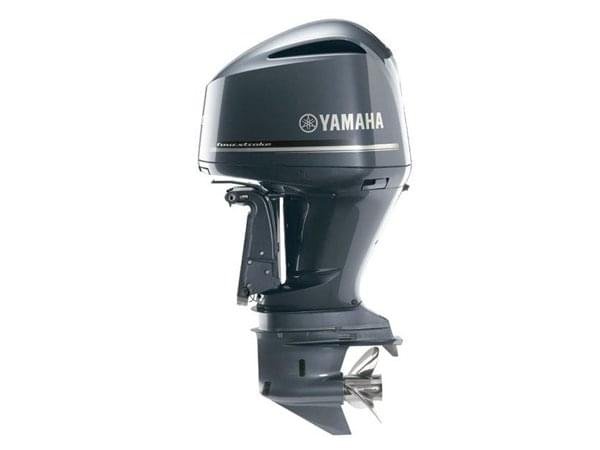

2017 Yamaha F300 4.2L Offshore UCA Outboard Motor

FOR THOSE WHO LIKE THEIR V6 LIGHTER, FASTER AND FIERCER.

Who says you have to put on the pounds to add more horses? Meet Yamaha’s Next Generation of V6 4.2L Offshore outboards. These award winners are packed with Yamaha’s legendary reliability, which is why so many anglers won’t trust anything else a hundred miles out.

2017 Yamaha F300 4.2L Offshore UCA Outboard Motor

Power/Performance

Mechanically Remote-Controlled Four Stroke V6 Outboard

Narrow 60° 3.3L Block Design

Variable Camshaft Timing

Long Track Induction System

Precision Multi-Point Fuel Injection

6 Independent Fuel Injectors

4 Large Radius Valves Per Cylinder

High Intake Valve Lift

Double Overhead Camshafts

In-Bank™ Exhaust

Exhaust Pressure Reduction System

Reliability/Durability

TCI Microcomputer

Electronic Single Throttle Valve (65mm)

Direct Drive System

Sacrificial Anodes

Forged Pistons

Water Cooled Rectifier/Regulator

Water Separator

Direct Ignition

YDC-30 Aluminum Alloy

5-Step Anti-Corrosion Paint Process

Top Mounted Electrical

High Output Alternator

SST Drive, Prop, Shift Shafts

SST Steering Tube

Convenience/Control

Command Link® System

Power Trim & Tilt

Freshwater Flush

Counter Rotation “LF” Model

Yamaha Diagnostic System

Multi-Charge Monitoring System

Single Belt Drive System

2017 Yamaha F300 4.2L Offshore UCA Outboard Motor

Year 2017

Manufacturer Yamaha Marine

Model Name F300 4.2L Offshore

Trim Name UCA

Generic Type (Primary) Four Stroke

Engine

Engine Type V6 (60º)

Engine Power 300hp at 5500 rpm (F/LF300)

Alternator (Output): 70 Amp

Displacement 4.2L (254 ci)

Gear Ratio (Primary) (21:12) 1.75:1

Lubrication Wet sump

Ignition System: TCI Micro Computer

Fuel Injection System: DOHC Fuel Injection VCT

Oil Type (Recommended): Yamalube® 4M (See owner’s manual)

Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 89)

Fuel Type (Recommended Filtration): Yamaha 10-Micron Fuel/Water Separating Filter (external)

Capacities

Oil capacity 6.3L/6.0L w/with filter

Spark Plug

Spark Plug LFR6A-11-00-000

Range

Note Full Throttle RPM Range: 5000 – 6000

Dimensions

Length Shaft: U = 30″

Bore 3.78 in. (96 mm)

Stroke 3.78 in. (96mm)

Weights

Dry Weight 30″ shaft / 259 kg (571 lbs)

Features

Note Mounting Centers: 28.6″

Features C.A.R.B. Rating: 3 Star

Features Degree of Tilt: 67° -Degree of Trim: -3° through +16°

Intake Design Single Throttle Valve

Exhaust Through Propeller

Note Gear Shift: Forward, Neutral, Reverse

Steering Angle Maximun: 32° from center, either direction

Cooling Water/Thermostatic Control

Note Ethanol Blend Limit: 10% Maximum

Compression Ratio 10.3:1

Starter Electric

Warranty

Warranty 3-Year Pleasure, 3-Year Government, 1-Year Commercial
