Description

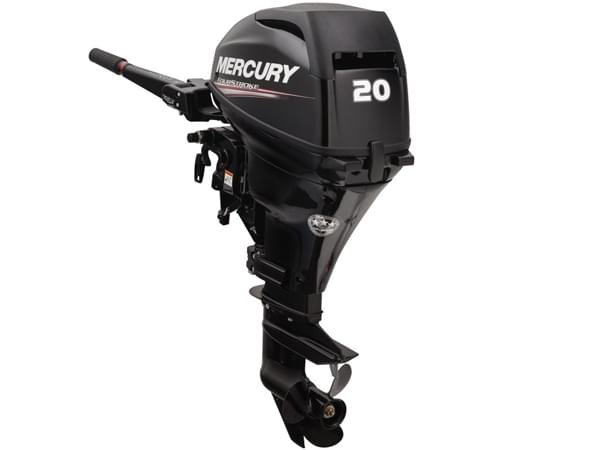

2017 Mercury 20 HP 20MLH Outboard Motor

Fast throttle response and fast acceleration are features designed into the 20 HP Mercury Outboard. With powerful low end torque and a large displacement your boat planes faster and you get to your destination across the water faster thanks to Mercury outboard engineering. The Mercury 20 HP Model 20MLH is your affordable choice in the 20 HP line up with a manual start, manual tilt and the 20 inch long shaft. A heavy duty transom bracket, vibration absorbing mounts and Mercury’s multi function tiller arm are also standard features.

2017 Mercury 20 HP 20MLH Outboard Motor

Large Displacement Powerhead (351cc)
Thru-Cowl Backup Manual Start
Digital CD Ignition with Spark Advance
Tuned Intake for Quick Acceleration
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab
Tiller Integrated F-N-R Gear Shifting
Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Heavy Duty Transom Mounting Bracket
Manual Tilt
Quiet Through-Propeller-Hub Exhaust
“Wishbone” Mount for Reduced Vibration
6.6 Gallon Fuel Tank and Fuel Line
Easy Maintenance Canister Oil Filter
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

2017 Mercury 20 HP 20MLH Outboard Motor

Model
20MLH

Model Year
2017

SKU
20MLH-17

Weight
118.0000

Manufacturer
Mercury

Country of Manufacture
Japan

Horsepower
20hp

Shaft Length
20″ (Long)

Steering
Tiller

Starting
Manual

Trim & Tilt
Manual

Fuel Delivery
Carburetor

Fuel Tank
External

Cylinder(s)
2

Displacement
21.4 / 351

Bore and Stroke
2.40 x 2.36in

Full Throttle RPM Range
5400-6100

Ignition System
CDI w/electronic spark advance

Induction Scavenging
SOHC

Valves per Cylinder
2

Fuel Type
87 octane/up to 10% ethanol

Fuel Tank / Fuel Line
6.6 / 25

Oil Type
Mercury 4-Stroke Outboard Oil

Oil Capacity
1 Quart (1000 ml)

Lubrication
Trochoid Pump

Alternator
Optional 12 amp / 138 watt (Electric)

Cooling System
Water-cooled with thermostat

Saltwater Rated
YES

Gear Ratio
2.15

Gear Shift
Forward-Neutral-Reverse

Propeller
9.2″ Diameter X 9.1″ Pitch 3-Blade Aluminum

Internal Battery
No

2017 Mercury 20 HP 20MLH Outboard Motor
What’s in the box?

Fuel Tank (6.6 gallon)
Quick Connect Fuel Line
Mercury 3-Year Warranty
Aluminum Propeller
Mercury 4-Stroke Oil
Owner’s Manual & Tool Kit
