Description

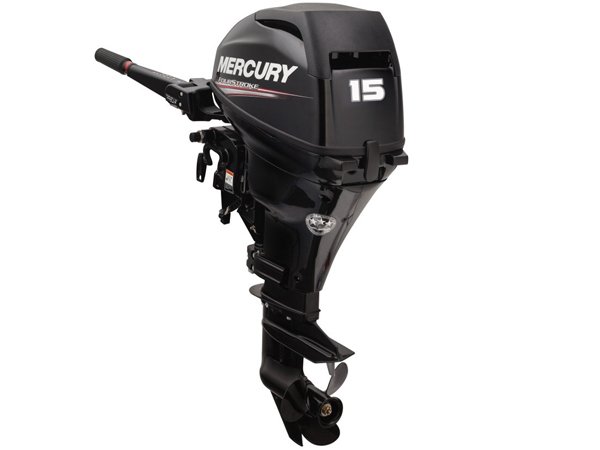

2017 Mercury 15 HP 15MLH Outboard Motor

tate of the art design of the 15 HP Mercury outboard motor powerhead creates the low-end torque needed for power and a fast plane making it an excellent source of power for medium to larger sized jon boats, skiffs, and inflatable boats. Mercury’s multi-function tiller handle is just one exclusive feature found on Mercury 15hp outboard engines. Mercury Outboard Model: 15MLH is an affordable choice in the 15 HP class. This 15 HP outboard motor is equipped with manual start and the 20 inch long shaft. Mercury outboard engines surpass industry standards and deliver power and fuel economy.

2017 Mercury 15 HP 15MLH Outboard Motor

Large Displacement Powerhead (351cc)
Decompression System for Easy Starting
Digital CD Ignition with Spark Advance
Tuned Intake for Quick Acceleration
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab
Tiller Integrated F-N-R Gear Shifting
Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Shallow Water Drive
Quiet Through-Propeller-Hub Exhaust
“Wishbone” Mount for Reduced Vibration
6.6 Gallon Fuel Tank and Fuel Line
Easy Maintenance Canister Oil Filter
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

2017 Mercury 15 HP 15MLH Outboard Motor

Model
15MLH

Model Year
2017

SKU
15MLH-17

Weight
118.0000

Manufacturer
Mercury

Country of Manufacture
Japan

Horsepower
15hp

Shaft Length
20″ (Long)

Steering
Tiller

Starting
Manual

Trim & Tilt
Manual

Fuel Delivery
Carburetor

Fuel Tank
External

Cylinder(s)
2

Displacement
21.4 / 351

Bore and Stroke
2.40 x 2.36in

Full Throttle RPM Range
5400-5600

Ignition System
CDI w/electronic spark advance

Induction Scavenging
SOHC

Valves per Cylinder
2

Fuel Type
87 octane/up to 10% ethanol

Fuel Tank / Fuel Line
6.6 / 25

Oil Type
SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

Oil Capacity
1 Quart (1000 ml)

Lubrication
Trochoid Pump

Alternator
12 amp / 138 watt (Electric)

Cooling System
Water-Cooled, Thermostatically Controlled

Saltwater Rated
YES

Gear Ratio
2.15:1

Gear Shift
Forward-Neutral-Reverse (shift in tiller handle)

Propeller
9.2″ Diameter X 9.1″ Pitch 3-Blade Aluminum

Internal Battery
No

2017 Mercury 15 HP 15MLH Outboard Motor
What’s in the box?

Fuel Tank (6.6 gallon)
Quick Connect Fuel Line
Mercury 3-Year Warranty
Aluminum Propeller
Mercury 4-Stroke Oil
Owner’s Manual & Tool Kit
