Description

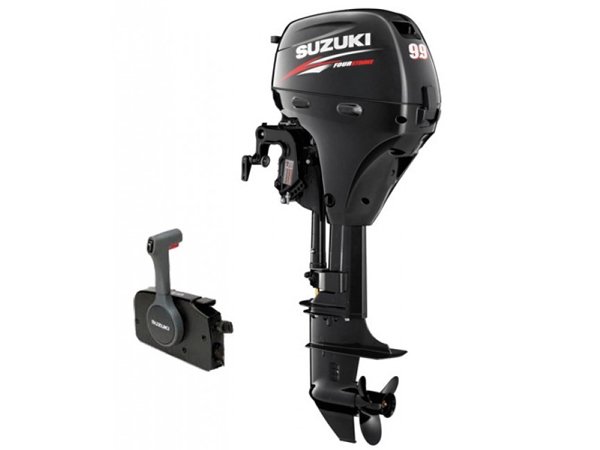

Suzuki 9.9 HP DF9.9BTS Outboard Motor

The Suzuki 9.9 hp EFI outboard motor model DF9.9BTS comes standard with 15 inch short shaft, electric start and remote throttle control. The 9.9 HP Suzuki outboard motor is an excellent choice of power for medium to larger sized jon boats and skiffs requiring a long shaft as well as auxiliary power for sailboats and trolling/kicker applications. This model features push-button electric start with a built-in 12V charging system. In addition, all portable Suzuki models 20 hp and below that feature electric start also retain the thru-cowl manual start pull cord. The 9.9hp Suzuki outboard engine is a great example of Suzuki’s continued excellence in engineering. Check out the long list of standard features below which make the 9.9 hp EFI Suzuki an exceptional value and industry leader.

Suzuki 9.9 HP DF9.9BTS Outboard Motor

Electronic Fuel Injection (EFI)
Sleek, Compact, Lightweight Design
Lightest EFI Outboard in 9.9hp 4-stroke Class
Saltwater Rated
Fresh Water Flushing Port
Multi-Layer Corrosion Protection
Electric Start + 12V Alternator System
Thru-Cowling Manual Back-Up Starting
Forward-Mounted Gear Shift Lever
Twist-Grip Throttle with Tension Control
Quiet Through-the-Prop Exhaust
Start-in-Gear Lockout Protection
Proven Automotive Style Oil Pump
Power Tilt
5 Trim Positions w/Tilt Lock Pin
Low Oil Pressure Warning System
Over Heat Warning System
Over-Rev Limiter Protection
Steering Friction Tension Control
Integrated Carrying Handle
Emergency Lanyard Stop Switch
3.1 US Gallon Fuel Tank / Fuel Line
3-Blade Aluminum Propeller
3-Star Ultra-Low Emission Rating
Suzuki’s Lean Burn Control System
Up to 17% more fuel efficient over
some competitor’s 4-strokes
Suzuki 3-Year Warranty

Suzuki 9.9 HP DF9.9BTS Outboard Motor

Model
DF9.9BTS

Model Year
N/A

SKU
DF9.9BTS-17

Weight
118.0000

Manufacturer
Suzuki

Country of Manufacture
Thailand

Horsepower
9.9hp

Shaft Length
15″ (Short)

Steering
Remote

Starting
Electric

Trim & Tilt
Power Tilt

Fuel Delivery
EFI

Fuel Tank
External

Cylinder(s)
2

Displacement
327 cc (20.0 cubic inches)

Bore and Stroke
60.4 x 57 mm (2.38 x 2.24 inches)

Full Throttle RPM Range
5000-6000 RPM

Ignition System
Digital CDI

Induction Scavenging
SOHC

Valves per Cylinder
2

Fuel Type
Unleaded Gasoline (87 octane)

Fuel Tank / Fuel Line
INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line

Oil Type
SAE 10W-30 or SAE 10W-40

Oil Capacity
33.8 fl oz. (1000 mL)

Lubrication
Wet Sump; Trochoid Type Cam-Driven Oil Pump

Alternator
12V 145W 12A

Cooling System
Water-Cooled

Saltwater Rated
YES

Gear Ratio
2.08:1

Gear Shift
Forward-Neutral-Reverse (front-mounted lever)

Propeller
3-Blade Aluminum 9.25″ Dia x 10″ Pitch

Internal Battery
No

Suzuki 9.9 HP DF9.9BTS Outboard Motor
What’s in the box?

3.1 gal. Fuel Tank
Fuel Line
Owner’s Manual
Aluminum Propeller
Tool Kit
Suzuki 3-Yr Warranty
