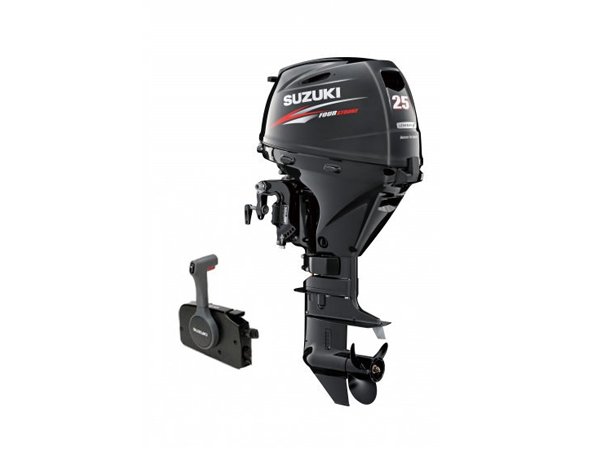

Suzuki 25 HP DF25ATL Outboard Motor
The 25 HP Suzuki outboard model # DF25ATL is equipped with every feature you might want. The 25 HP Suzuki outboard is first in class in weight and quietness. The state of the art green technology outboard is a battery-less, fuel injdected 4 stroke motor that has power left over for your larger and heavier jon boats, skiffs and sailboat applications. This model has the 20 in long shaft, electric start, power trim and tilt, remote steering and throttle, a 6 gallon external gas tank and gas line and the famous Suzuki 3 year factory warranty.
Suzuki 25 HP DF25ATL Outboard Motor
- Battery-Less Electronic Fuel Injection
- Easy Start – Recoil Starter
- Lean Burn Control
- Over-Rev. Limiter
- Low Oil Pressure Caution
- Digital CDI
- Fresh Water Flushing System
- Shallow Water Drive
- Suzuki Anti-Corrosion System
Suzuki 25 HP DF25ATL Outboard Motor
| Model | DF25ATL |
| Model Year | No |
| SKU | DF25ATL-17 |
| Weight | 158.0000 |
| Manufacturer | Suzuki |
| Country of Manufacture | Thailand |
| Horsepower | 25hp |
| Shaft Length | 20″ (Long) |
| Steering | Remote |
| Starting | Electric |
| Trim & Tilt | Power Trim & Tilt |
| Fuel Delivery | EFI |
| Fuel Tank | External |
| Cylinder(s) | 3 |
| Displacement | 29.8 (489) |
| Bore and Stroke | 2.80 x 2.68 () |
| Full Throttle RPM Range | 5000 – 6000 |
| Ignition System | Digital CDI |
| Induction Scavenging | SOHC |
| Valves per Cylinder | 4 |
| Fuel Type | Unleaded Gasoline (87 octane) |
| Fuel Tank / Fuel Line | No |
| Oil Type | SAE 10W-30 or SAE 10W-40 |
| Oil Capacity | 1.6 (1.5) |
| Lubrication | Wet Sump; Trochoid Type Cam-Driven Oil Pump |
| Alternator | Manual 12V 14A / Electric 12V 14A |
| Cooling System | Water-Cooled |
| Saltwater Rated | YES |
| Gear Ratio | 2.09:1 |
| Gear Shift | Forward-Neutral-Reverse (front-mounted lever) |
| Propeller | 3 x 9.25 x 10 |
| Internal Battery | No |
Suzuki 25 HP DF25ATL Outboard Motor
What’s in the box?
- 6 gal Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
- Standard Side Mount Control Box and Harness
