Description

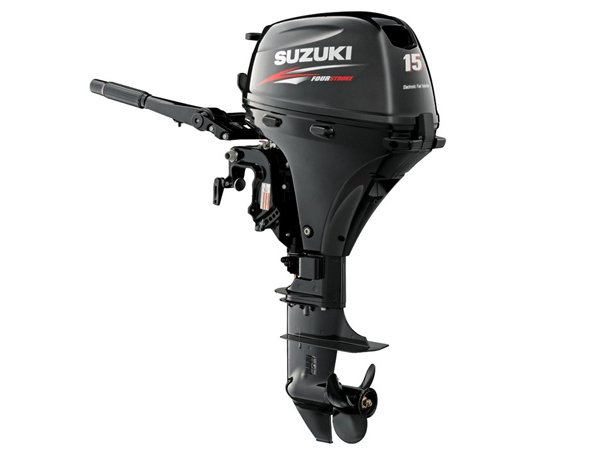

Suzuki 15 HP DF15AEL Outboard Motor

The all new Suzuki 15hp EFI is an excellent choice of power for medium to larger sized jon boats and skiffs requiring a long shaft as well as auxiliary power for sailboats and trolling/kicker applications. This model features push-button electric start with a built-in 12V charging system. In addition, all portable Suzuki models 15hp and below that feature electric start also retain the thru-cowl manual start pull cord.

As the lightest outboard in its class and one of the quietest 4-strokes ever built, the 15hp is a great example of Suzuki’s excellence in engineering.

Suzuki 15 HP DF15AEL Outboard Motor

Electronic Fuel Injection (EFI)
Sleek, Compact, Lightweight Design
Lightest Outboard in 15hp 4-stroke Class
Saltwater Rated
Fresh Water Flushing Port
Multi-Layer Corrosion Protection
Electric Start + 12V Alternator System
Thru-Cowling Manual Back-Up Starting
Forward-Mounted Gear Shift Lever
Twist-Grip Throttle with Tension Control
Quiet Through-the-Prop Exhaust
Start-in-Gear Lockout Protection
Proven Automotive Style Oil Pump
Shallow Water Drive
5 Trim Positions w/Tilt Lock Pin
Low Oil Pressure Warning System
Over Heat Warning System
Over-Rev Limiter Protection
Steering Friction Tension Control
Integrated Carrying Handle
Emergency Lanyard Stop Switch
3.1 US Gallon Fuel Tank / Fuel Line
3-Blade Aluminum Propeller
3-Star Ultra-Low Emission Rating
Suzuki’s Lean Burn Control System
Up to 17% more fuel efficient over
some competitor’s 4-strokes
Suzuki 3-Year Warranty

Suzuki 15 HP DF15AEL Outboard Motor

Model
DF15AEL

Model Year
No

SKU
DF15AEL-17

Weight
108.0000

Manufacturer
Suzuki

Country of Manufacture
Thailand

Horsepower
15hp

Shaft Length
20″ (Long)

Steering
Tiller

Starting
Electric

Trim & Tilt
Manual

Fuel Delivery
EFI

Fuel Tank
External

Cylinder(s)
2

Displacement
327 cc (20.0 cubic inches)

Bore and Stroke
60.4 x 57 mm (2.38 x 2.24 inches)

Full Throttle RPM Range
5000-6000 RPM

Ignition System
Digital CDI

Induction Scavenging
SOHC

Valves per Cylinder
2

Fuel Type
Unleaded Gasoline (87 octane)

Fuel Tank / Fuel Line
INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line

Oil Type
SAE 10W-30 or SAE 10W-40

Oil Capacity
33.8 fl oz. (1000 mL)

Lubrication
Wet Sump; Trochoid Type Cam-Driven Oil Pump

Alternator
12V 145W 12A

Cooling System
Water-Cooled

Saltwater Rated
YES

Gear Ratio
2.08:1

Gear Shift
Forward-Neutral-Reverse (front-mounted lever)

Propeller
3-Blade Aluminum 10.25″ Dia x 9.0″ Pitch

Internal Battery
No

Suzuki 15 HP DF15AEL Outboard Motor
What’s in the box?

3.1 gal. Fuel Tank
Fuel Line
Owner’s Manual
Aluminum Propeller
Tool Kit
Suzuki 3-Yr Warranty
