Description

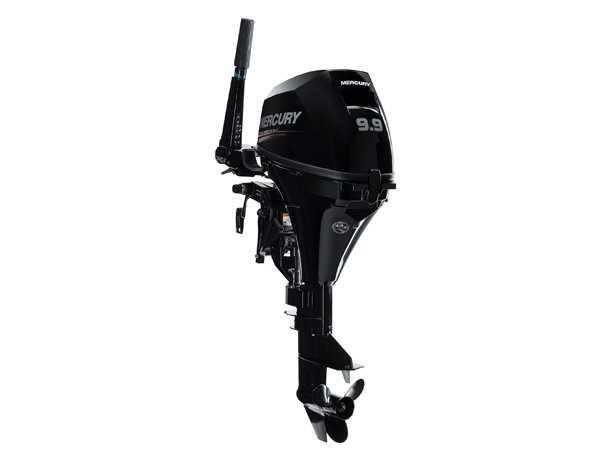

2018 Mercury 9.9 Hp 9.9MLH Outboard Motor

The Mercury 9.9hp outboard motor is lightweight, compact, powerful, and portable making it the perfect outboard for skiffs and small pontoons. The Mercury 9.9 HP outboard engine is a two cylinder four-stroke marine engine that delivers the fuel efficiency and smooth quiet ride Mercury outboards are known for. This 84 lb. Mercury 9.9 HP Outboard Model #: 9.9MLH comes equipped with a manual start and 20 inch shaft, factory 3 year warranty, auto ratchet trim, and tiller steering.

2018 Mercury 9.9 Hp 9.9MLH Outboard Motor

Compact and Lightweight
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab
Tiller Integrated F-N-R Gear Shifting
Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Auto Ratchet Trim System (5 positions)
Shallow Water Drive
Quiet Through-Propeller-Hub Exhaust
3.2 Gallon Fuel Tank and Fuel Line
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

2018 Mercury 9.9 Hp 9.9MLH Outboard Motor

MODEL
9.9MLH

MODEL YEAR
2018

SKU
9.9MLH-18

WEIGHT
84.0000

MANUFACTURER
Mercury

COUNTRY OF MANUFACTURE
Japan

HORSEPOWER
9.9hp

SHAFT LENGTH
20″ (Long)

STEERING
Tiller

STARTING
Manual

TRIM & TILT
Manual

FUEL DELIVERY
Carburetor

FUEL TANK
External

CYLINDER(S)
2

DISPLACEMENT
12.8 ci (208 cc)

BORE AND STROKE
2.16 x 1.73 in. (55 x 44 mm)

FULL THROTTLE RPM RANGE
5,000 – 6,000

IGNITION SYSTEM
CDI with electronic spark advance

INDUCTION SCAVENGING
SOHC

VALVES PER CYLINDER
2

FUEL TYPE
87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE
3.2 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE
SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY
27 fl. Oz. (800 ml)

LUBRICATION
Trochoid Pump

ALTERNATOR
Optional 12V 76W 6A (installation required)

COOLING SYSTEM
Water-cooled with thermostat

SALTWATER RATED
YES

GEAR RATIO
2.08:1

GEAR SHIFT
Forward-Neutral-Reverse (shift in tiller handle)

PROPELLER
8.5″ Diameter X 8.0″ Pitch 3-Blade Aluminum

INTERNAL BATTERY
No

2018 Mercury 9.9 Hp 9.9MLH Outboard Motor
WHAT’S IN THE BOX?

Fuel Tank (3.2 gallon)
Quick Connect Fuel Line
Mercury 3-Year Warranty
Aluminum Propeller
Mercury 4-Stroke Oil
Owner’s Manual & Tool Kit
