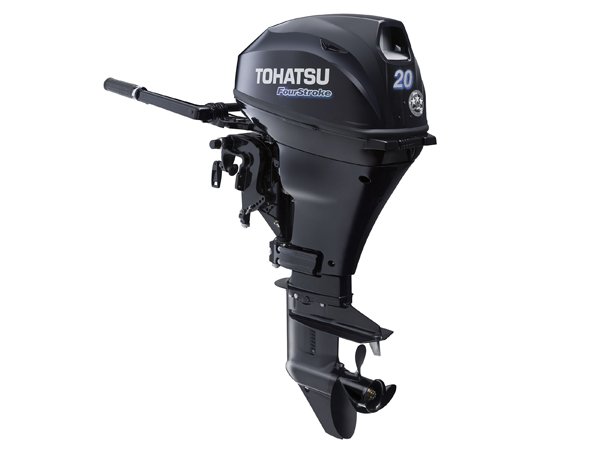

2017 Tohatsu 20 HP MFS20DL Outboard Motor

The Tohatsu 20hp outboard motor model MFS20DL with it’s 20 inch long shaft, tiller steering and manual start delivers smooth performance, power and great fuel efficiency. The 20hp Tohatsu engine is affordable and perfect for medium to larger sized aluminum fishing boats, and skiffs as well as heavier sailboats.

The water cooled Tohatsu 20 HP outboard is a two cylinder 4 stroke engine and comes standard with forward, neutral and reverse shift on the front of the outboard, a 3.1 gallon external gas tank and Tohatsu’s 5 year factory warranty.

2017 Tohatsu 20 HP MFS20DL Outboard Motor

Decompression Device for Easy Starting
Advanced Digital CD Ignition System
Low Oil Pressure Warning System
ESG Over Rev RPM Limiter
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Easy to Replace Canister Style Oil Filter
Sacrificial Zinc Anodes + Trim Tab
Forward-Mounted Gear Shift Lever
Twist-Grip Throttle with Tension Control
Adjustable Steering Friction Setting
Tuned Intake for Crisp Acceleration
Carburetor Accelerator Pump
Start-In-Gear Protection
Thermostatically Controlled Cooling
Advanced Cross Flow Induction System
Shallow Water Drive; 6 Trim Positions
Quiet Through-the-Propeller Exhaust
3.1 Gallon Fuel Tank / Fuel Line
Safety Lanyard Cut-Off Switch
Operating Manual & Emergency Tool Kit
Tohatsu 5-Year Warranty

2017 Tohatsu 20 HP MFS20DL Outboard Motor

Model
MFS20DL

Model Year
2017

SKU
MFS20DL-17

Weight
117.0000

Manufacturer
Tohatsu

Country of Manufacture
Japan

Horsepower
20hp

Shaft Length
20″ (Long)

Steering
Tiller

Starting
Manual

Trim & Tilt
Manual

Fuel Delivery
Carburetor

Fuel Tank
External

Cylinder(s)
2

Displacement
351 cc (21.41 cubic inches)

Bore and Stroke
61 x 60 mm (2.40 x 2.36 inches)

Full Throttle RPM Range
5,400-6,100 RPM

Ignition System
Digital CD Ignition

Induction Scavenging
SOHC

Valves per Cylinder
2

Fuel Type
Unleaded Gasoline (87 octane)

Fuel Tank / Fuel Line
3.1 Gal. Fuel Tank + Quick Connect Fuel Line

Oil Type
SAE 10W-30 or SAE 10W-40 (SF, SG, SH, SJ)

Oil Capacity
1 Quart (1000 ml)

Lubrication
Wet Sump

Alternator
Optional 12V 145W 12A (installation required)

Cooling System
Water-Cooled, Thermostatically Controlled

Saltwater Rated
Yes

Gear Ratio
2.15:1

Gear Shift
Forward-Neutral-Reverse (front mount shifter)

Propeller
9.2″ Dia. X 9.1″ Pitch 3-Blade Aluminum

Internal Battery
No

2017 Tohatsu 20 HP MFS20DL Outboard Motor
What’s in the box?

Fuel Tank (3.1 gallon)
Quick Connect Fuel Line
Aluminum Propeller
Owner’s Manual & Tool Kit
Tohatsu 5-Year Warranty
